Vapor Barrier Installation in Portland, OR
Reinforced 10-mil and heavier vapor barriers for Portland metro crawl spaces, sealed and terminated to the stem wall as Oregon code requires. Installed by licensed Oregon CCB or Washington L&I contractors; free in-home inspection and written scope.
What Is Vapor Barrier Installation?
Last updated
The soil under a typical Portland home releases gallons of water a day through plain evaporation. You never see it happen; you just smell the result by February and watch it condense on the cold ducts. A vapor barrier is the fix at the source: a continuous plastic sheet over the exposed soil (run up the foundation walls in a full installation) that stops ground moisture before it ever reaches the crawlspace air.
The R408 requirements below are quoted from the 2023 code. Oregon’s 2026 edition took effect on October 1, 2026, with either edition accepted until March 31, 2027, and the under-floor vapor retarder provisions — full coverage, 12-inch laps, 12 inches up the perimeter wall — are recorded in the code review committee's published matrix as retained unchanged. What the 2026 edition does and does not change.
Materials and thickness matter more than most homeowners realize. Oregon Residential Specialty Code specifies a Class I vapor retarder over the ground of a vented crawl space — a permeance class, not a thickness — lapped not less than 12 inches at the joints and run not less than 12 inches up the perimeter wall (R408.2.1), and a continuous Class I vapor retarder sealed to the stem walls in a sealed, unvented one (R408.3). 6-mil polyethylene meets that permeance class, which is why it is often described as the code minimum, but no mil figure appears in the Oregon requirement and going thicker buys durability rather than compliance. Most Portland contractors install heavier 10-mil or 12-mil reinforced poly with embedded scrim (CrawlGuard and similar string-reinforced barriers are common), because thin 6-mil tears under foot traffic during HVAC service, plumbing repairs, and pest control visits. Premium scopes use 20-mil cross-laminated barriers when the homeowner expects to be in the house long-term or when access is poor and future replacement would be expensive.
A standalone vapor barrier installation is different from full encapsulation. The vapor barrier is the material on the soil. Encapsulation is the larger scope: barrier plus sealed wall membrane, closed foundation vents, rim joist air sealing, and mechanical conditioning (dehumidifier or supply air). Many Portland homes that do not need full encapsulation still benefit from a properly installed vapor barrier as a focused, lower-cost moisture measure.
A barrier that stops at the piers and never reaches the stem wall is a tarp, not a vapor retarder. The seams and the terminations are the whole job. What separates a code-compliant barrier from a rolled-out sheet
What Vapor Barrier Installation Looks Like

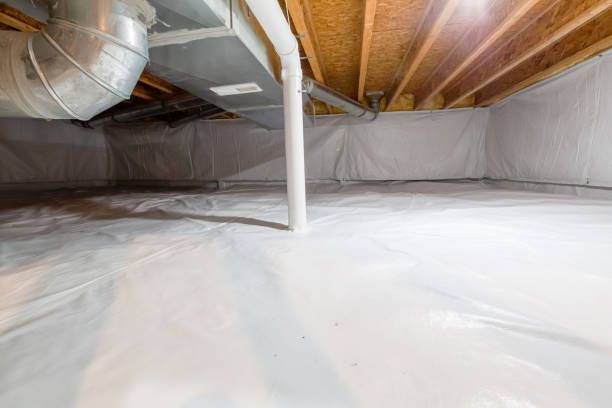

Bare soil to sealed ground cover. The barrier is cut around each pier, taped with butyl seam tape, and terminated up the stem wall.
Signs You May Need Vapor Barrier Installation
- No vapor barrier visible on the soil under the house
- Existing barrier is torn, displaced, or has obvious gaps around piers
- Vapor barrier is thin clear plastic (probably 4-mil from original construction)
- Soil under the house is darker or damper than expected
- Condensation visible on the underside of the sub-flooring or HVAC ducts
- Crawlspace humidity readings consistently above 70% during winter
- Recent rodent activity that may have damaged the existing barrier
- Planning a home sale and need a code-compliant vapor retarder for inspection
Why Vapor Barrier Installation Matters in Portland
Portland's seasonal climate is the reason vapor barriers matter so much in the metro. Rainfall here is heavily concentrated: at Portland International Airport, the 1991–2020 normals put annual precipitation at 36.92 inches, with roughly 16.25 inches of it — about 44 percent — falling in November, December and January alone. The soil under a Portland house stays saturated for that entire stretch, and a cool, shaded crawlspace has little capacity to dry it out. Moisture evaporating from bare earth is the dominant source, and with nothing covering the ground it goes straight into the crawlspace air.
The condensation problem runs on a different season, and it is worth separating the two. Warm air holds far more moisture than cool air, so it is summer ventilation that can deliver humid outdoor air into a crawlspace that has stayed cool, where it condenses on the coolest surfaces available — ducts, pipes, the underside of the subfloor. Winter's problem is saturated soil and no drying; summer's is warm air meeting cool surfaces. A vapor barrier addresses the first directly.
On the thresholds worth knowing: sustained crawlspace humidity above roughly 70 percent is a practical warning level for mold risk, and EPA's general guidance is to keep indoor humidity below 60 percent, ideally between 30 and 50. Structural decay is a separate and higher bar — the USDA Forest Products Laboratory's Wood Handbook states that serious decay occurs only above the fiber saturation point, averaging 30 percent moisture content, and that fully air-dried wood at not more than 20 percent provides a reasonable margin of safety. Humid air alone can grow mold on framing; rotting it takes liquid water.
Vapor barriers do not solve every Portland crawlspace problem. They do not stop liquid water from groundwater seepage (that is the job of waterproofing) and they do not condition humid air that is already in the crawlspace (that is the job of a dehumidifier or supply air). But for homes with reasonably dry soil and a working ventilation strategy, a 10-mil reinforced vapor barrier installed across the entire soil area and run up the foundation walls is the single most cost-effective moisture intervention available.
The most common Portland scope is replacing a deteriorated 4-mil or 6-mil barrier from the 1970s through 1990s with a new 10-mil or 12-mil reinforced sheet. Existing barriers in this age range are typically torn, displaced, missing in spots where utilities run, and often eaten by rodents. The replacement is straightforward when crawlspace clearance is reasonable.
How Vapor Barrier Installation Works With a Licensed Contractor
-
Free in-home inspection
A licensed contractor measures crawlspace square footage, evaluates existing barrier condition, and identifies any preparation work (debris removal, moisture treatment, pest issues).
-
Material and scope quote
Written quote specifies mil thickness, reinforced or not, square footage covered, whether barrier runs up walls, and seam-sealing method.
-
Site prep and removal
Old barrier is rolled up and disposed of; any standing water is pumped; debris is removed; the soil surface is leveled where needed.
-
Install and seam-seal
New barrier is rolled out, cut around piers and posts, mechanically fastened to walls when included in scope, and all seams are double-taped with butyl seam tape rated for vapor barriers.
What Affects the Cost of Vapor Barrier Installation?
Modelled 2026 Portland metro range: Standalone vapor barrier installation in Portland is modelled at $3,225 to $4,425 for a code-compliant reinforced sheet on a 1,200 to 1,500 sq ft crawlspace. A smaller crawl space costs less, and the calculator below scales the range by size, but this site publishes no fixed small-crawl-space figure: square footage, the number of piers to cut around, and whether an old barrier has to come out first move the price most. Premium 20-mil cross-laminated barriers with wall coverage and double-sealed seams run $4,675 to $6,375. Work scheduled around a closing date can carry a premium over the same scope booked without a deadline.
- Square footage of soil coverage : Most Portland crawlspaces are 800 to 1,800 sq ft of soil area.
- Barrier thickness : Plain 6-mil meets the code permeance class; 10-mil reinforced is the standard Portland scope. The premium scope — a 20-mil cross-laminated barrier with wall coverage and double-sealed seams — is modelled at $4,675 to $6,375, against $3,225 to $4,425 for the standard one.
- Wall coverage : Oregon requires the barrier to run not less than 12 inches up the perimeter wall; carrying it higher, to above exterior grade, costs more in material and labor than soil-only.
- Existing barrier removal : Removing and disposing of an old barrier adds 4 to 8 labor hours.
- Pier and post count : Each pier requires the barrier to be cut and taped; high pier counts add labor.
Estimate your vapor barrier installation cost with the calculator · What vapor barrier installation costs in the Portland metro
Problems That Lead Homeowners to Vapor Barrier Installation
Vapor Barrier Installation by City
Each city page describes the local ground and housing stock, which shape what a vapor barrier installation scope involves there. These are 4 of the 19 service areas this site covers.
Related Crawl Space Repair Services
- Crawl Space Encapsulation Full sealing with vapor barrier, conditioning, and rim joist insulation.
- Crawl Space Waterproofing Perimeter drains, sumps, and membranes to stop water at the source.
- Crawl Space Drainage Interior perimeter drains, curtain drains, and grading solutions.
- Sump Pump Installation Submersible pumps, battery backups, and Wi-Fi monitoring.
- Insulation Replacement Remove failed batt; install R-30 batt or closed-cell foam to code.
- Mold Remediation IICRC S520 mold cleanup paired with moisture-source correction.
- Crawl Space Structural Repair Floor joists, girders, support posts and footings — and the water that damaged them.
- All Crawl Space Repair Services Compare every service in this category and how they fit together
Sources
Code sections, climate normals, and moisture/decay thresholds cited above.
-
Oregon Building Codes Division, 2023 Oregon Residential Specialty Code (ORSC) (2023 edition, based on the 2021 IRC) Checked
Section R408 under-floor space requirements: ventilation openings and ratios for vented crawl spaces, Class I vapor retarder coverage and lap dimensions, and the three conditioning methods that permit an unvented crawl space: continuously operated mechanical exhaust or a conditioned air supply, each at 1 cfm per 50 square feet, or dehumidification sized in accordance with the manufacturer’s specifications (R408.3 item 2.3), which sets no pints-per-day figure. Also R408.2.4, which lists the six permitted ventilation-opening coverings and caps their least dimension at 1/4 inch — the figure that decides whether a code-compliant foundation vent screen excludes mice as well as rats.
Note: Effective October 1, 2023 (construction provisions mandatory April 1, 2024). The 2026 edition took effect October 1, 2026. Under OAR 918-480-0005 this 2023 edition, apart from Chapter 1, stays adopted through March 31, 2027, and building departments must accept plans designed to either edition until then, so confirm which one a permit is reviewed under before relying on a section number. What did and did not change for crawl spaces is tracked at /oregon/2026-crawl-space-code-changes/.
-
Oregon Building Codes Division, 2026 Oregon Residential Specialty Code — RMSB review code review matrix (Structural, Fire and Life Safety, Mechanical) (26orsc-matrix.pdf, 17 pages) Checked
Every crawl space entry in the 2026 code tracker: the R408.2 under-floor vapor retarder, ventilation ratio, vent placement and vent covering amendments (page 9, outcome Retain); the committee’s approved add-back permitting a continuously operated mechanical ventilation system at 1.0 cfm per 50 square feet in place of foundation vents (page 9, outcome Approve); the R408.3 unvented crawl space amendment (page 9, outcome Retain); the deletion of R408.8 (page 9, outcome Approve); and Appendix BE (AF) Radon Control Methods (page 15, outcome Retain).
Note: A record of what the code review committee recommended, which the Residential and Manufactured Structures Board approved and sent to public hearing. It is not the adopted code text. The adopting rule takes the 2024 IRC “as further amended by the Division”, and this site has not yet been able to read the published 2026 ORSC to confirm that each outcome recorded here carried through unchanged.
-
NOAA National Weather Service, Portland, Portland Climate Book — precipitation normals (1991–2020 climate normals) Checked
Portland-area rainfall totals and their seasonal distribution, the basis for every statement on this site about the wet season and its timing.
-
United States Environmental Protection Agency, A Brief Guide to Mold, Moisture and Your Home Checked
Indoor humidity targets, EPA’s position on when sampling is and is not worth paying for, its position on biocides, the general health effects of damp indoor spaces, and the 24–48 hour drying window — which EPA states as a PREVENTION target ("dry water-damaged areas and items within 24-48 hours to prevent mold growth"), not as a time by which mold begins.
-
USDA Forest Products Laboratory, Wood Handbook, Chapter 14: Biodeterioration of Wood (General Technical Report FPL-GTR-282 (2021 edition)) Checked
The wood moisture content and temperature ranges at which decay fungi become active, which is what separates a surface mold problem from structural rot.
Sources last checked between and ; the date beside each one is when it was last opened. Where a figure comes from a document that is revised on a schedule, the edition or version is named above so you can confirm it against the current one yourself.
Vapor Barrier Installation FAQs
- Oregon code requires a Class I vapor retarder, which is a permeance rating rather than a thickness — plain 6-mil polyethylene meets it. Most experienced Portland contractors install 10-mil or 12-mil reinforced poly anyway, because 6-mil tears under foot traffic from HVAC service, plumbing repair, and pest control work, and a torn barrier stops working where it is torn. Premium scopes use 20-mil cross-laminated barriers when the homeowner wants 20-plus year durability or when crawlspace access is poor and future replacement would be expensive. When comparing bids, check the thickness each one names, because a 6-mil quote and a 10-mil quote are not the same job; this site publishes no separate figure for the upgrade.
- Sometimes, but not always. A vapor barrier stops moisture evaporation from the soil, which is often the largest moisture source in a Portland crawlspace. If your crawlspace is humid primarily because of soil moisture and your foundation vents are functioning, a properly installed 10-mil reinforced barrier can drop humidity meaningfully. If the crawlspace is humid because outdoor air is condensing on cool surfaces during the rain season, or because of seepage through the foundation walls, a vapor barrier alone will not solve the problem and a fuller encapsulation or waterproofing scope is needed.
- A 10-mil reinforced vapor barrier installed properly in a Portland crawlspace typically lasts 15 to 25 years before it needs replacement. The lifespan depends heavily on foot traffic (every HVAC repair, plumbing call, or pest control visit puts wear on the barrier), rodent activity, and the quality of the seam tape. Cheap 4-mil or 6-mil sheeting can fail in 5 to 10 years. The 20-mil cross-laminated premium tier is rated for 25 to 50 years.
- For a true vapor retarder system, yes. Oregon requires the edges of the retarder to extend not less than 12 inches up the perimeter foundation wall — twice the model code's 6 inches — attached and sealed there, with all seams lapped or taped. Termination bar or batten strip is the usual way it is fastened. Some lower-cost installs leave the barrier lying loose on the soil with no wall coverage, which lets perimeter air pull moisture out from under the edges. If you are paying for a barrier, paying for proper wall termination is the part that makes the system actually work.
- Every seam in the barrier needs to be sealed. Butyl seam tape rated for poly vapor barriers is the standard; standard duct tape and house wrap tape are not durable enough for this application. Better contractors double-tape seams (one strip across the seam, one strip overlapping) and use butyl primer when the barrier surface is dusty. Ask during the inspection what tape brand and method the contractor uses.
- Yes, and winter is arguably the best time: every moisture problem your crawlspace has is on full display in January.
- A documented code-compliant 10-mil reinforced vapor barrier with photos and receipts is a standard Portland real estate disclosure asset. A missing or shredded barrier is one of the routine findings in a buyer's home inspection report on an older Portland house, and once it is in the report it becomes a repair-credit negotiation, which is usually a worse outcome for the seller than having handled it beforehand. Work scheduled around a closing date can also cost more than the same job booked without a deadline, because the contractor is fitting it into an existing calendar.
- In residential construction the terms are often used interchangeably, but technically they describe different products. A vapor barrier or vapor retarder is specifically rated to stop water vapor transmission, measured in perms. A moisture barrier is a more general term that may include products designed primarily to stop liquid water. For crawl space soil coverage, what you want is a Class I vapor retarder (less than 0.1 perm) and most reinforced 10-mil poly products meet that rating.
