Crawl Space Drainage in Portland, OR
Interior perimeter drains, curtain drains, sump basins, and exterior grading for Portland metro crawl spaces. Installed by licensed Oregon CCB contractors with a free in-home inspection.
What Is Crawl Space Drainage?
Last updated
Water under a house always has a story: it ran off the yard during a downpour, it pushed through a foundation crack under pressure, or it rose up from a high water table and just sat there. Drainage is the part of the job that answers the question of where that water goes instead. Trenches, pipe, gravel, a basin, a pump, and the grading outside that should have sent it elsewhere in the first place. Get the drainage right and most of the other crawlspace problems get a lot easier to solve.
The most common Portland scope is an interior perimeter drain: a trench cut along the inside face of the foundation walls, lined with washed gravel, fitted with a perforated drain pipe wrapped in filter fabric, sloped to a sump basin at the low point, and pumped out to daylight. Variations include French drains (mid-yard or interior runs to capture surface or sub-surface flow), curtain drains (uphill trenches that intercept groundwater before it reaches the foundation), and footing drains (deeper exterior installs at the foundation footing). Less invasive measures, downspout extensions, regrading, and dry wells, often go in at the same time.
Drainage work is distinct from waterproofing in scope but they overlap in practice. Drainage is the plumbing side: where the water flows. Waterproofing is the moisture-control side: barriers, sealants, and conditioning. Most Portland projects bundle both, because installing a perimeter drain without also addressing vapor and humidity leaves the air problem unsolved.
A sump pump without a perimeter drain is a bucket in the wrong corner. Collect the water first; then the pump has something to do. Why drains come before pumps in every honest scope
Signs You May Need Crawl Space Drainage

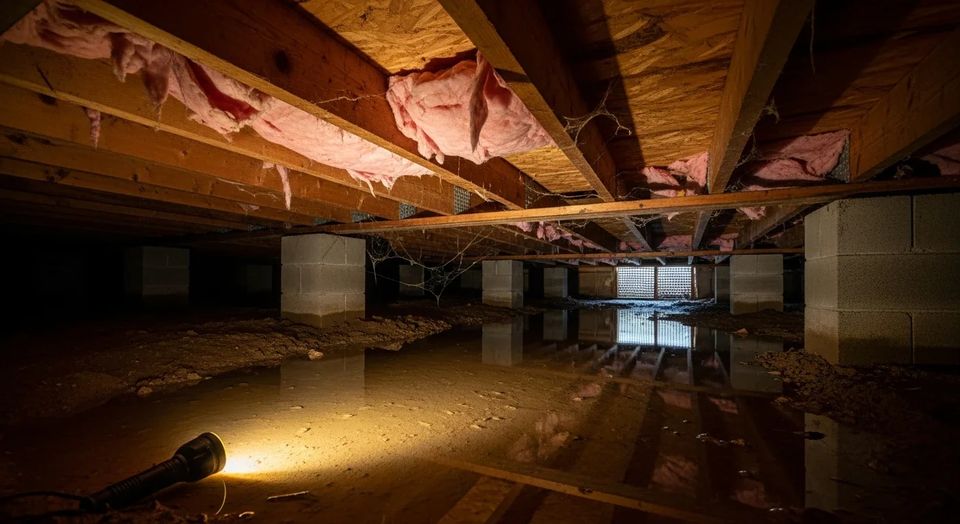

- Standing water on the crawlspace soil after a rain event
- Sump pump that runs every few minutes during winter rain
- Visible seepage or wet streaks on the inside of foundation walls
- Mud or saturated soil under the house even between storms
- Downspouts that dump water within 3 feet of the foundation
- Yard that holds water in low spots near the house
- High-water-mark lines on foundation walls indicating past flooding
- Hillside lot with uphill drainage that flows toward the house
Why Crawl Space Drainage Matters in Portland
Portland's combination of clay-heavy soils, persistent winter rainfall, and rolling topography makes drainage the foundational repair for most wet-crawlspace situations. Through the wet half of the year, the local water table rises into the top three feet of soil across most metro neighborhoods, which means foundations sit in saturated soil for months. Clay does not drain well; water moves laterally and finds the path of least resistance, which is often through a foundation crack or a vent opening.
Three Portland drainage patterns are common:
- Hillside curtain drains. Lake Oswego, West Linn, Happy Valley, parts of Mt. Tabor and Healy Heights have uphill grades that send groundwater toward foundations. A curtain drain cut uphill from the house intercepts that flow and diverts it around the structure.
- Interior perimeter drains. Flat-lot tract homes in Beaverton, Hillsboro, Tigard, and Aloha collect water at the foundation and benefit from interior perimeter trenches with sumps. This is the workhorse scope across the metro.
- Surface fixes first. Pre-1940 inner Portland homes often have undersized downspout extensions (3 to 6 feet) when 10 to 15 feet is the minimum that actually works. Extending downspouts, regrading away from the foundation, and installing dry wells handles a surprising amount of crawlspace water without trenching inside the house.
Oregon Residential Specialty Code R405 requires perimeter drains on new construction, but homes built before the early 1990s often have either no drain or a clay-tile or perforated steel drain that has long since failed. Replacing those failed legacy systems with modern PVC or rigid HDPE drains is one of the most common drainage scopes in inner Portland.
How Crawl Space Drainage Works With a Licensed Contractor
-
Site inspection and drainage diagnosis
A licensed contractor checks gutters, downspouts, grading, and crawlspace conditions to find the actual water sources. Most jobs start with low-cost exterior fixes if those alone will solve it.
-
Scope and routing plan
The contractor designs the drain run, sump location, and discharge route. You receive a written scope: linear feet of pipe, basin size, pump specs, discharge plumbing.
-
Trench and install
Trenches are cut at the inside face of the foundation, lined with washed gravel, fitted with perforated pipe in filter sock, and sloped to the sump basin.
-
Test and final walk-through
A pump test confirms basin fill and discharge flow. The contractor demonstrates operation, provides maintenance instructions, and pulls any required permits.
What Affects the Cost of Crawl Space Drainage?
Typical 2026 Portland metro range: Interior perimeter drainage systems typically run $3,825 to $6,800 in Portland metro, including drain pipe, sump basin, pump, and discharge plumbing. Curtain drains run $2,125 to $5,100 depending on length and excavation depth. Exterior downspout work and regrading is usually $675 to $2,125. Complex hillside drainage projects with multiple interceptors can reach $7,225 to $13,600.
- Linear feet of drain pipe : Most Portland crawlspaces need 80 to 140 linear feet of perimeter drain.
- Drain type : Interior perimeter drain, French drain, curtain drain, and footing drain each have different labor and materials.
- Discharge route : A nearby daylight discharge is cheapest; storm tie-ins or long buried discharge runs add labor.
- Sump basin and pump : Standard 1/3 HP submersible runs $350 to $600; battery backup pump adds $350 to $675.
- Exterior work : Downspout extensions, regrading, and dry wells often go in alongside interior drains.
- Soil type : Clay-heavy soil trenches slower than sand or rock; rocky soil adds chiseling time.
- Permits : Plumbing permits for sump discharge are required in most Portland metro cities.
- Access : Tight side yards, locked gates, and low crawlspace clearance all slow the work.
- Season and water table : Trenching through saturated January soil is slower than dry-season work; some contractors discount summer drainage installs for exactly that reason.
- Obstacles in the trench line : Piers, ductwork, plumbing runs, and old concrete footings in the trench path each add hand-digging time.
See full crawl space drainage cost guide and pricing calculator
Problems That Lead Homeowners to Crawl Space Drainage
Cities We Cover for Crawl Space Drainage
Licensed contractors in the network cover all 19 Portland metro cities. These are the four priority service areas with dedicated city pages for crawl space drainage.
Related Crawl Space Repair Services
- Crawl Space Encapsulation Full sealing with vapor barrier, conditioning, and rim joist insulation.
- Crawl Space Waterproofing Perimeter drains, sumps, and membranes to stop water at the source.
- Vapor Barrier Installation Code-compliant 10-mil reinforced barriers on soil and foundation walls.
- Sump Pump Installation Submersible pumps, battery backups, and Wi-Fi monitoring.
- Insulation Replacement Remove failed batt; install R-30 batt or closed-cell foam to code.
- Mold Remediation IICRC S520 mold cleanup paired with moisture-source correction.
Crawl Space Drainage FAQs
- Interior perimeter drainage with a sump basin and pump typically runs $3,825 to $6,800 in 2026 Portland metro pricing for an average crawlspace. Curtain drains for hillside lots run $2,125 to $5,100. Exterior downspout work and regrading is $675 to $2,125. Complex hillside systems with multiple interceptors and long discharge runs can reach $7,225 to $13,600. A free inspection from a licensed contractor gives the actual quote for your site.
- Both use perforated pipe in gravel-lined trenches; the difference is location and purpose. A perimeter drain runs along the inside or outside of the foundation footing and collects water that has already reached the foundation. A French drain typically runs through the yard or under a problem area and collects surface or shallow sub-surface water before it reaches the foundation. Hillside projects often use both: a French or curtain drain uphill from the house plus an interior perimeter drain as a backup.
- Most Portland metro cities require plumbing permits for sump discharge connections, and some require building permits for interior drainage systems that involve trenching near structural footings. The licensed CCB contractor pulls permits as part of their scope. Ask for a copy of the permit in writing. Discharge into the public storm system has specific rules in Portland; some jurisdictions require dry wells or splash blocks instead of direct storm tie-ins.
- Yes. Most Portland drainage contractors work year-round, and many homeowners actually prefer winter installs because the contractor can see exactly where water is entering. Interior trenching is unaffected by weather. Exterior work like regrading or trench installation outside the house can slow during sustained heavy rain, but minor wet weather is normal. Emergency drainage installs (active flooding) often get scheduled within a few days during winter.
- Only if the water already reaches a sump basin on its own. In most Portland crawlspaces, water enters at the foundation walls and pools across the soil; without a perimeter drain to collect that water and route it to a basin, a standalone sump pump just sits there. A perimeter drain plus sump is the typical Portland scope. Standalone sump installs make sense only when an existing drain already feeds a basin and the pump itself has failed.
- Submersible sump pumps are very quiet, typically 40 to 50 decibels at the basin (about the level of a refrigerator). Pedestal pumps are noticeably louder but rare in Portland crawlspaces. The discharge line can be noisier than the pump itself, especially if it runs through an interior wall to an exterior discharge. Wrapping the discharge pipe with foam insulation reduces noise transmission and the licensed contractor should offer that as a low-cost upgrade.
- A curtain drain is a perimeter drain installed uphill from the foundation, designed to intercept groundwater flowing downhill before it reaches the house. It is typically 2 to 4 feet deep with gravel, perforated pipe wrapped in filter fabric, and a daylight discharge at one end. Homes in Lake Oswego, West Linn, Happy Valley, parts of Mt. Tabor, and hillside lots throughout the metro are the most common candidates. If your lot slopes toward the house and you have ongoing crawlspace water, a curtain drain is often the most effective single intervention.
- Two to four days for an interior perimeter drain with sump. Downspout and grading work: usually one.
