Crawl Space Encapsulation in Portland, OR
Seal the crawlspace, condition it, and the moisture that drives wood rot, mold, and cold floors loses its source. Connect with a licensed Oregon CCB or Washington L&I contractor for a free in-home inspection and a written, line-item scope.
What Is Crawl Space Encapsulation?
Last updated
Picture the dirt-floor crawlspace under a 1960s Cully ranch: foundation vents open to the weather, a sheet of torn poly on the ground, and humid air drifting in all winter to condense on cool joists. Encapsulation closes that loop. The crawlspace gets sealed off from the outside air and the bare ground, then conditioned so it stays dry year-round. Done right, it stops behaving like a cave and starts behaving like part of the house.
A full Portland encapsulation generally means a reinforced vapor barrier (10-mil or 12-mil for most jobs, 20-mil on premium scopes) run across the soil and up the stem walls, mechanically fastened and sealed at every seam and penetration. Foundation vents get closed, rim joists get air-sealed and insulated, and a dehumidifier or supply air from the furnace holds relative humidity around 50% to 55%.
An honest take: not every house needs this. If your crawlspace is genuinely dry, has decent clearance, and just lacks a ground cover, a thick vapor barrier plus a standalone dehumidifier will protect it for a fraction of the cost. Full encapsulation earns its price when there is real moisture, rotting insulation, or a buyer's inspection on the line. A licensed contractor should tell you which camp you are in before quoting the bigger scope. And if there is standing water down there, this is the wrong page: sealing a crawlspace that floods traps the water inside it. That is a crawl space waterproofing scope, or basement waterproofing where the water comes through a below-grade wall.
When it is warranted, the payoff is concrete: dry framing, warmer floors in February, no more musty draft up the stairwell, and cleaner indoor air because the crawlspace stops feeding the stack effect. That last point matters more than most homeowners expect, since a large share of the air you breathe upstairs started out down below.
A surprising share of the air you breathe upstairs started out under your house. Seal and condition the crawlspace, and the whole house breathes differently. Why encapsulation outperforms vented crawls in Portland winters
What Crawl Space Encapsulation Looks Like

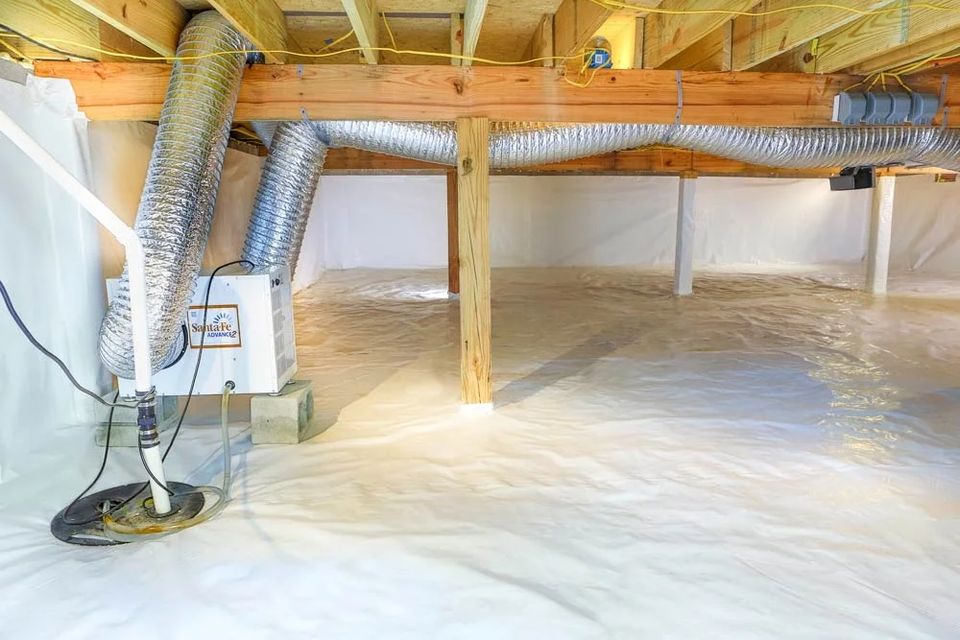

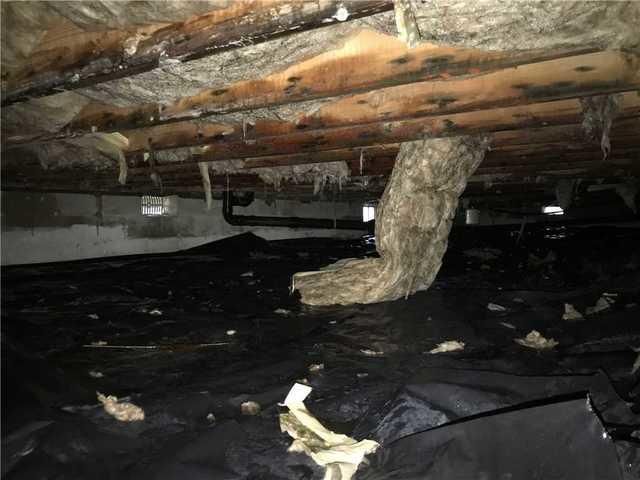

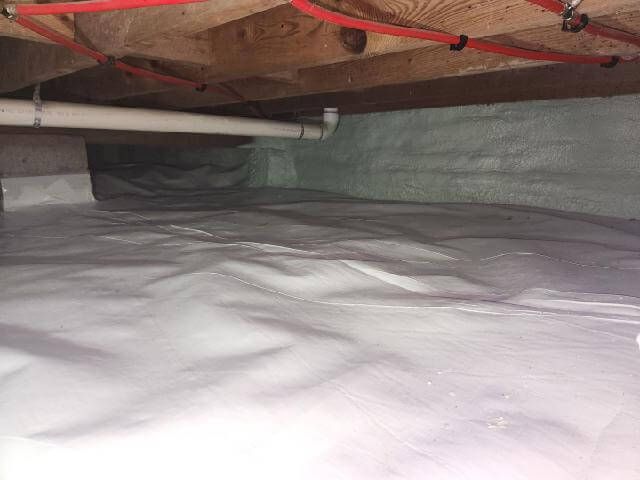

A typical Portland encapsulation: the before state shows torn vapor barrier, wet fallen insulation, and active moisture. The after state is a sealed, conditioned space with a current-spec barrier and a dehumidifier holding humidity at 50% to 55%.
Signs You May Need Crawl Space Encapsulation
- A musty or earthy smell coming from the floor vents, baseboards, or stairwells
- Floors above the crawlspace feel cold even with the heat on
- Visible torn, displaced, or missing vapor barrier on the dirt floor
- Sagging, falling, or wet fiberglass insulation between the floor joists
- Wood rot on rim joists, sill plates, or sub-flooring near the perimeter
- Mold or efflorescence visible on foundation walls or piers
Why Crawl Space Encapsulation Matters in Portland
Oregon's Residential Specialty Code R408 permits unvented (closed) crawlspaces, and the current code cycle continues to. R408.3 sets the requirements, and the specific numbers are worth knowing because they are what separates a complete scope from a partial one. A continuous Class I vapor retarder covers the exposed earth. Its joints overlap by 6 inches and are sealed or taped, or overlap at least 12 inches where they are not sealed or taped. Its edges extend not less than 12 inches up the stem wall and are attached and sealed to the stem wall or insulation. The closed crawlspace must then get one of three things: continuously operated mechanical exhaust at 1 cfm per 50 square feet of floor area, a conditioned air supply at the same rate, or dehumidification sized in accordance with the manufacturer's specifications. Most contractors install 10-mil or thicker liner rather than the minimum, for durability rather than for code.
See closed vs vented crawl spaces for the full code text, including the Oregon exception that applies to new construction in Clackamas, Multnomah and Washington counties. Oregon’s 2026 edition of the code took effect on October 1, 2026, with either edition accepted until March 31, 2027; on the published record the R408.3 unvented crawl space requirements were retained unchanged, and the 2026 code tracker covers the one crawl space ventilation change that was approved.
Encapsulation and radon
Radon is the one interaction worth understanding before you sign, and it is the question almost no encapsulation quote raises. Radon is a soil gas. Sealing a crawl space changes the paths it can take — in both directions at once, which is why the honest answer is not a simple better or worse.
A continuous sealed liner across the soil and up the stem walls is a barrier between the ground and the space, which works against soil gas entering. Closing the foundation vents removes an air-exchange path that had been diluting whatever did enter, which works the other way. Which effect dominates in a particular house depends on the soil under it, how leaky the floor above is, and above all on which of R408.3's three conditioning methods the contractor installs, since exhaust ventilation, supply air from the conditioned space and dehumidification move air very differently. None of that is predictable from outside the house.
Oregon's code already treats this as a live question rather than a theoretical one. In the counties named in ORS 455.365 where radon-mitigating construction is required — Multnomah, Clackamas and Washington among them — unvented crawl spaces are not permitted in new construction without an approved mechanical ventilation system. Across the Columbia, Clark County sits in EPA's Zone 1, the highest of its three categories, defined by a predicted average indoor screening level above 4 pCi/L. Oregon's own geological survey found that radon potential here tracks the geologic unit rather than the county or the ZIP code, with the highest Portland-area concentrations associated with the coarse-grained Missoula Flood deposits of the eastern basin and fine-grained deposits more variable. Two houses a mile apart can sit on different ground.
What to actually do about it: test before the work and test again afterwards. A short-term test is inexpensive relative to an encapsulation scope, and it is the only thing that answers the question for your address — EPA is explicit that a zone map must not be used to decide whether an individual home needs testing, and that every home should be tested regardless of zone. Ask the contractor which R408.3 conditioning method they are quoting and whether the crawl space will be exhausted, supplied with conditioned air, or dehumidified only. If a test comes back at or above 4 pCi/L, mitigation is separate specialist work rather than something an encapsulation crew adds on, and the Oregon Health Authority's radon program publishes the current testing and action guidance.
Portland's housing stock divides into three rough generations, each with a different encapsulation scope:
- Pre-1940 inner Portland (Sellwood, St. Johns, NE Alameda, Mt. Tabor, Laurelhurst, Hawthorne, Buckman). Original old-growth Douglas fir joists, dirt floors, low clearance often under 18 inches. Encapsulation here may require partial regrading or insulated tub crawl liners and almost always involves rim joist air sealing.
- 1970s-90s Westside tract homes (Beaverton, Hillsboro, Tigard, Aloha). Degraded 4-mil or 6-mil poly from the original build, sagging R-19 batt insulation between floor joists, often rodent-damaged. Encapsulation typically includes batt removal, new R-30 floor batt or wall foam, and a fresh reinforced vapor barrier.
- 2000s and newer SW corridor homes (Lake Oswego, West Linn, Sherwood, Wilsonville). Better starting condition but hillside drainage problems. Encapsulation here is often paired with sump pumps or perimeter drainage upgrades. Encapsulation on Tualatin's 1990s subdivision stock is the flat-lot version of the same job, where the question is surface water and floodplain position rather than water arriving from uphill.
Energy Trust of Oregon pays an incentive toward two parts of a crawl space project on a home heated by a participating utility: floor insulation, where the existing insulation is R-11 or less, and rim joist insulation. Its incentive sheet lists rim joist insulation rather than air sealing, and the liner, the dehumidifier and the vent closures are not rebated on their own — so the incentive applies to the insulation portion of the scope rather than the encapsulation as a whole, which the 2026 rebate guide breaks down. A Trade Ally is not required to install it; the FAQ below covers who can. Have the existing R-values documented during your inspection, before any old insulation comes out. If you are still weighing whether the full system is justified, our ROI guide for Oregon homes walks through the math.
How Crawl Space Encapsulation Works With a Licensed Contractor
-
Free in-home inspection
A licensed contractor crawls the space, measures square footage and clearance, documents existing conditions with photos, and identifies any drainage or structural prep needed.
-
Written scope and quote
You receive a line-item scope: barrier thickness, square footage covered, mechanical conditioning method, insulation, vents, drainage. No verbal-only quotes.
-
Prep and demolition
Old insulation, debris, and damaged barrier are removed. Standing water is pumped. Pest evidence is documented for follow-up by a separate licensed pest operator if needed.
-
Install and seal
New vapor barrier is mechanically fastened to walls and around piers, all seams taped, foundation vents closed, rim joists sealed, and conditioning equipment installed. Final walk-through with you.
What Affects the Cost of Crawl Space Encapsulation?
Modelled 2026 Portland metro range: Standard closed-crawl encapsulation runs about $10,100 to $12,325. Premium scope with dehumidifier, rim joist foam, and 20-mil barrier reaches $14,875 to $20,400. Vapor barrier only (no full encapsulation) is $3,225 to $4,425.
- Square footage : Most Portland homes fall between 800 and 1,800 sq ft of crawlspace area.
- Clearance height : Crawlspaces under 18 inches add labor hours because workers move slower and need to dig out spots for piers and pumps.
- Existing moisture conditions : Standing water or active mold requires remediation steps before barrier install.
- Vapor barrier thickness : Oregon code sets a permeance class rather than a thickness, and plain 6-mil meets it; most Portland scopes use 10-mil or 12-mil reinforced, with 20-mil for premium tiers.
- Conditioning method : A standalone dehumidifier adds $1,275 to $2,550 in equipment and electrical work; supply air ducting from the HVAC system is sometimes cheaper if the furnace is accessible.
- Rim joist air sealing and insulation : Closed-cell spray foam at the rim joists is priced separately from the base scope, at $1,025 to $2,050. Rim joist insulation is also one of the two measures an Energy Trust incentive can pay toward, where the existing rim insulation is R-4 or less.
- Vent closures : Each foundation vent must be sealed; older homes may have 8 to 12 vents.
- Access and staging : Tight side yards, locked gates, and limited driveway access add staging time. Portland homes with no side-yard access cost more to scope.
Estimate your crawl space encapsulation cost with the calculator · What crawl space encapsulation costs in the Portland metro
Problems That Lead Homeowners to Crawl Space Encapsulation
Crawl Space Encapsulation by City
Each city page describes the local ground and housing stock, which shape what a crawl space encapsulation scope involves there. These are 4 of the 19 service areas this site covers.
Related Crawl Space Repair Services
- Crawl Space Waterproofing Perimeter drains, sumps, and membranes to stop water at the source.
- Vapor Barrier Installation Reinforced 10-mil and heavier barriers, sealed and terminated to the stem wall.
- Crawl Space Drainage Interior perimeter drains, curtain drains, and grading solutions.
- Sump Pump Installation Submersible pumps, battery backups, and Wi-Fi monitoring.
- Insulation Replacement Remove failed batt; install R-30 batt or closed-cell foam to code.
- Mold Remediation IICRC S520 mold cleanup paired with moisture-source correction.
- Crawl Space Structural Repair Floor joists, girders, support posts and footings — and the water that damaged them.
- All Crawl Space Repair Services Compare every service in this category and how they fit together
Sources
R408.3 conditioning requirements, the ORS 455.365 radon-county limit, Oregon radon-potential mapping and the EPA zone definition cited in the radon section above; the owner licensing exemption cited in the FAQs; and the Energy Trust measures, thresholds and installer rules cited in the Portland section, the cost factors and the FAQs.
-
Oregon Building Codes Division, 2023 Oregon Residential Specialty Code (ORSC) (2023 edition, based on the 2021 IRC) Checked
Section R408 under-floor space requirements: ventilation openings and ratios for vented crawl spaces, Class I vapor retarder coverage and lap dimensions, and the three conditioning methods that permit an unvented crawl space: continuously operated mechanical exhaust or a conditioned air supply, each at 1 cfm per 50 square feet, or dehumidification sized in accordance with the manufacturer’s specifications (R408.3 item 2.3), which sets no pints-per-day figure. Also R408.2.4, which lists the six permitted ventilation-opening coverings and caps their least dimension at 1/4 inch — the figure that decides whether a code-compliant foundation vent screen excludes mice as well as rats.
Note: Effective October 1, 2023 (construction provisions mandatory April 1, 2024). The 2026 edition took effect October 1, 2026. Under OAR 918-480-0005 this 2023 edition, apart from Chapter 1, stays adopted through March 31, 2027, and building departments must accept plans designed to either edition until then, so confirm which one a permit is reviewed under before relying on a section number. What did and did not change for crawl spaces is tracked at /oregon/2026-crawl-space-code-changes/.
-
Oregon Health Authority, Radon Program Checked
Radon testing guidance and action levels for Oregon homes, referenced because sealing a crawl space changes how soil gas enters a house.
-
Oregon Department of Geology and Mineral Industries, Radon Potential in Oregon (Open-File Report O-18-01, Franczyk, Niewendorp and McClaughry) Checked
That Oregon radon potential tracks GEOLOGIC UNIT rather than county or ZIP boundary, mapped statewide against the Oregon Geologic Data Compilation, and that in the Portland area the highest radon concentrations are associated with coarse-grained Missoula Flood deposits, with fine-grained flood deposits more variable.
Note: A potential map built from geology plus voluntarily submitted test results. It does not establish the radon level in any individual house, and neither this site nor this report is a substitute for testing one.
-
U.S. Environmental Protection Agency, EPA Map of Radon Zones — Washington Checked
That Clark County is in Zone 1, EPA’s highest of three radon categories, defined as a predicted average indoor screening level greater than 4 pCi/L. Zone 2 is 2 to 4 pCi/L and Zone 3 is below 2. This is the sourced radon fact behind the four Washington city pages, and it pairs with the Appendix AF radon vent system that WAC 51-51-0408 requires where crawl space ventilation is reduced.
Note: EPA states the map must not be used to decide whether an individual home needs testing, and that every home should be tested regardless of zone. A county-level prediction says nothing about one building.
-
Oregon Legislative Assembly, ORS 701.010 — Application of chapter (exemptions), and ORS 701.021 — Licensing requirement (2023 Oregon Revised Statutes) Checked
That a person who undertakes, offers to undertake or bids work as a contractor must hold a current CCB licence (701.021); the owner exemption at 701.010(7) for a person performing work on property that person owns, whether occupied by the owner or not, or on that person’s own residence, which does not apply to work done in pursuit of an independent business with the intent of offering the structure for sale; and the narrow exemption at 701.010(4) for one structure or project where the aggregate price of all contracts is less than $1,000 AND the work is of a casual, minor or inconsequential nature — an exemption that does not apply to anyone who advertises or holds themselves out as a contractor.
Note: The two conditions are conjunctive, and the advertising carve-out removes almost everyone a homeowner could actually hire. Elsewhere this site uses the ordinary shorthand that paid contracting work of $1,000 or more requires a licence; that shorthand is the practical consequence of this section rather than its text.
-
Energy Trust of Oregon, Insulation — Residential incentives Checked
That Energy Trust publishes self-installation guidelines for floor insulation in its Specification Manual and strongly encourages anyone planning to self-install to schedule a call with an Energy Advisor first; that applications for contractor-installed work must be signed by the installing contractor; and the floor insulation conditions of existing insulation at R-11 or less, insulated to R-30 or greater or to fill the cavity.
Note: The page does not set out every condition a self-installed project must meet. Confirm with Energy Trust before starting if the incentive matters to the budget; incentives are subject to funding and can change.
-
Energy Trust of Oregon, Residential Incentive Information Sheet (Oregon and Washington) (Form PI 320I, version PI 0320I v2026.5 (rev. 260909), effective January 1, 2026) Checked
Every 2026 incentive figure quoted on this site: per-square-foot amounts for floor and wall/rim joist insulation by occupancy type and by state, the R-11-or-less existing floor insulation threshold and the R-30 insulate-to target, the R-4-or-less wall and rim joist threshold, the 60-day submission deadline, the paid-in-full invoice requirement, and the list of participating utilities. One document carries both states: pages 1-6 are the Oregon sheet, pages 7-9 the Washington sheet, which is why the Washington figures cite the same form.
Note: Energy Trust states incentives are subject to funding availability and may change. Confirm the current amount before budgeting around it. Washington-side floor insulation is an Energy Trust incentive for NW Natural-heated homes, not a NW Natural program - NW Natural’s own residential rebates cover furnace conversion, fireplaces, tankless water heaters and generators, and include no insulation measure.
Sources last checked between and ; the date beside each one is when it was last opened. Where a figure comes from a document that is revised on a schedule, the edition or version is named above so you can confirm it against the current one yourself.
Crawl Space Encapsulation FAQs
- This site models a standard 2026 Portland metro encapsulation at $10,100 to $12,325 for a 1,200 to 1,500 sq ft crawlspace. Premium scopes with a 20-mil barrier, closed-cell rim joist foam, and a built-in dehumidifier run $14,875 to $20,400. A vapor barrier on its own (without full sealing and conditioning) is modelled at $3,225 to $4,425. Square footage, clearance height, existing standing water, and add-on services like sump pumps drive most of the variation. These are modelled estimates rather than collected quotes; the methodology sets out how they are produced.
- For most Portland metro homes, yes. The Pacific Northwest has the worst possible combination for vented crawlspaces: cool ground temperatures plus persistently humid outdoor air for six months a year. Vented crawlspaces in this climate condense moisture all winter long, which feeds wood rot, mold, and insulation decay. Encapsulation removes the moisture source. The changes homeowners notice first are warmer floors, the musty smell going away, and a crawlspace that is no longer unpleasant to open. Heating bills generally improve as well, though how much depends on how leaky your floor assembly was to begin with and what the rest of the envelope looks like; anyone quoting you a specific percentage before they have been under your house is guessing.
- A properly installed encapsulation with a reinforced 10-mil or thicker barrier typically lasts 15 to 25 years before the barrier itself needs replacement. The dehumidifier or conditioning equipment has a shorter service life, around 8 to 12 years for residential units. Most contractors offer 10 to 25 year material warranties; ask for the warranty in writing during your inspection. How long each part of the system actually lasts is worth knowing before you compare those numbers. Rodent intrusion or undisclosed structural settling can damage a barrier sooner, which is why the inspection scope matters, and why rodent exclusion belongs before encapsulation rather than after it.
- Under Oregon Residential Specialty Code R408.3, a closed (unvented) crawlspace must get one of three things: dehumidification sized in accordance with the manufacturer's specifications, continuously operated mechanical exhaust at 1 cfm per 50 square feet, or a conditioned air supply at that same rate. A dehumidifier is the most common Portland choice because it works regardless of HVAC layout. This site models a dehumidifier, supplied, installed and wired, at $1,275 to $2,550 on top of the base scope.
- In most Portland homes, yes. Musty smells typically originate from microbial growth on damp wood, soil, or insulation in the crawlspace, and the smell travels up through the house via the stack effect (warm air rising drags crawlspace air with it). A properly sealed and conditioned crawlspace removes the moisture that feeds the microbial growth and stops the air exchange. If the smell does not clear within two to four weeks after encapsulation, the licensed contractor should re-inspect for missed sources like wet rim joist insulation or a hidden mold colony.
- Crawlspace floor insulation and rim joist insulation are eligible measures under Energy Trust of Oregon's residential program on a home served by a participating gas or electric utility, where the existing insulation is below Energy Trust's threshold. A Trade Ally is not the only route: a contractor who is not a trade ally can install eligible work if they hold a current Oregon CCB license, or an active Washington contractor license for a Washington project, and Energy Trust publishes self-installation guidelines for floor insulation. Some tiers, including Savings Within Reach, do run through an enrolled trade ally. The exact rebate amounts and required R-values change each program year, so confirm the current sheet and have the existing R-values documented before the old insulation comes out. Vapor barriers and dehumidifiers alone are not rebated, but they are usually installed as part of a project that qualifies through the insulation measure.
- Two to four working days for most homes. Add mold remediation or drainage and it can stretch to a week.
- Legally, yes. Oregon's contractor licensing law exempts a person working on property they own or on their own residence, unless the work is done as a business with the intent of selling the house, so you do not need a CCB license to encapsulate your own crawl space. Anyone you pay to do it does. The real limits are technical. A vapor barrier on its own is a realistic homeowner project where there is room to work. A sealed crawl space is harder: Oregon's R408.3 requires it to be conditioned by one of the permitted methods, the seams and the stem-wall terminations are where self-installed liners usually fall short, and a new circuit for a dehumidifier needs an electrical permit and inspection even when the owner does the wiring. A contractor's inspection through this service is free, which makes it a cheap way to find out what scope the house actually needs before deciding which parts to do yourself. Doing crawl space work yourself vs hiring it out goes through it job by job.
